Specifications

Power Supply: DC 8~36V.

High quality video transmission.

With infrared led range up to 60meter, It could catching image promptly at night.

Waterproof design. Die-casting high strength aluminum casing. protection grade up to IP66.

Super shockproof, perfect for kinds of car vehicle surveillance.

360° horizontal continuously rotation.

Netcom realizes remote real-time viewing, remote dispatching and commanding.

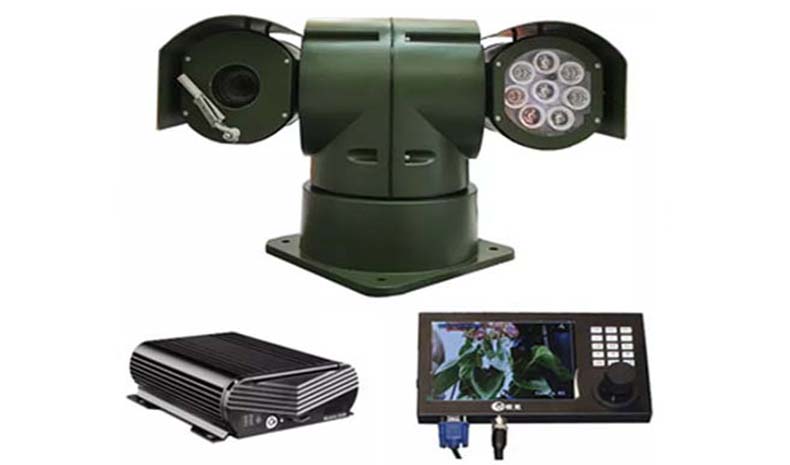

Integration of 8" monitor and 4-dimensional keyboard makes it small volume, light weight and superior appearance.

8" LCD resolution:1280*760.

RS485 control output signals, convenient for controlling device near and in distance.

Input signal is 1 channel VGA HD signal and 1 channel BNC analog signal.

Baud rate:1200 bps~9600 bps; Protocol:Pelco_P,Pelco_D.

Supply voltage:AC/DC 9V~12V; Power:25W.

GPS Port: Built in GPS for vechile position.

Network port: RJ45 port / 3G/4G port.

Hard disk drive: support 1 2.5" HDD/SSD with SATA interface. The max.

Video Output:1 channel CVBS output, 1 channel VGA output,(1 channel aviation plug).

Video Input: aviation connector,digital component signal access.NVR and PTZ

Camera connect by special aviation cable, support 1 channel 1080P IP PTZ

Camera input and 4 channel AHD input or analog input.

Essential details

Warranty: 6 years

Weight: 16kg.

Working Tine: 24hours Working

Warranty: 6 Year
